ATTACHING
THE HEADS-UP MOTOCROSS/ATV STABILIZER

What is Included in the HEADS-UP MOTOCROSS/ATV STABILIZER Package

Each HEADS-UP MOTOCROSS/ATV STABILIZER package includes:  (1) Heads-Up Stabilizer, (1) Stabilizer Shoulder Pad,  and (1) FASGRIP Hook Helmet Strip.  Tools needed:  A pair of scissors.

        stabilizer
        Stabilizer
           stabilizer shoulder pad
              Stabilizer Shoulder Pad


halmet part
FASGRIP Helmet Strip

Installation of the FASGRIP Hook Strips to the Helmet

Clean the back of the helmet with a sponge or cloth with mild soap and water and towel dry.  Take the FASGRIP Hook Helmet Strip (5") peal off the protective backing (it should be sticky) and place at the bottom edge on the back of the helmet and press down forcefully to secure the strip to the helmet.  (NOTE:  If your helmet has a ridge, cut the strip into two pieces and place one piece below and one above the ridge.)

back of helmet


FASGRIP
helmet strip
WAIT 24 HOURS BEFORE USE.


Attaching the Stabilizer Shoulder Pads

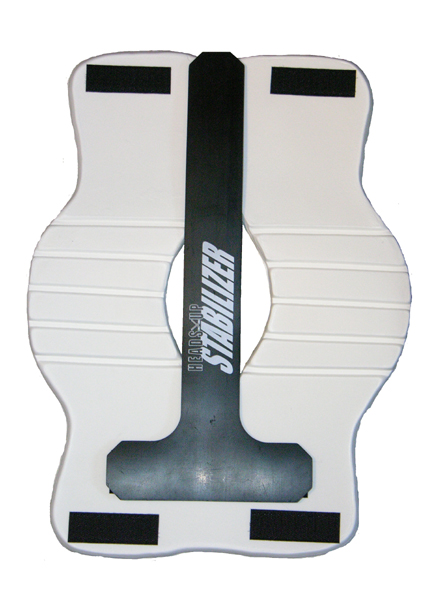

stabilizer
Stabilizer Shoulder Pad and
Stabilizer comes pre-assembled.
over head pic

Simply pull the Stabilizer
Shoulder Pad over your head.
attaching
Attach the straps
under your arm put area

Note:  If the neck hole is to tight around the individuals neck
cutting shoulder pad
simply cut the neck hole bigger with scissors.

Attaching the Stabilizer to the Helmet

1.  The Stabilizer Shoulder Pad Attachment MUST be attached firmly under the arm pit area.
2.  Put a shirt on over top of the Stabilizer Shoulder Pad Attachment.  If you wear a hest or back protector
     put it on over top of your shirt (see below.)
Stabilizer attached                                  stabilizer attached

3.  Now, put on your helmet making sure that it is securley attached.
4.  Firmly attach the Stabilizer to the back of the helmet with the head and chin at a 90 degree angle, attaching
     from the bottom of the helmet towards the top.
head up                         head up
NOTE:  Never attach the Stabilizer to the helmet with the head and chin down or below a 90 degree angle.

THE HEADS-UP MOTOCROSS/ATV STABILIZER
DOES NOT PREVENT INJURY
.

danber label

Copyright 2009 The Heads-Up Stabilizer, LLC.  All rights reserved.
Patent Protected by the USPTO
